PAN Caravan Models

Bulut Plan

i i i

Comfort and safety are the most valuable aspects in the caravan industry. With our original design and innovative perspective and R & D studies, expert architects and engineers gave life to the designs. We offer your new living space, a pleasant caravan life in accordance with international standards.

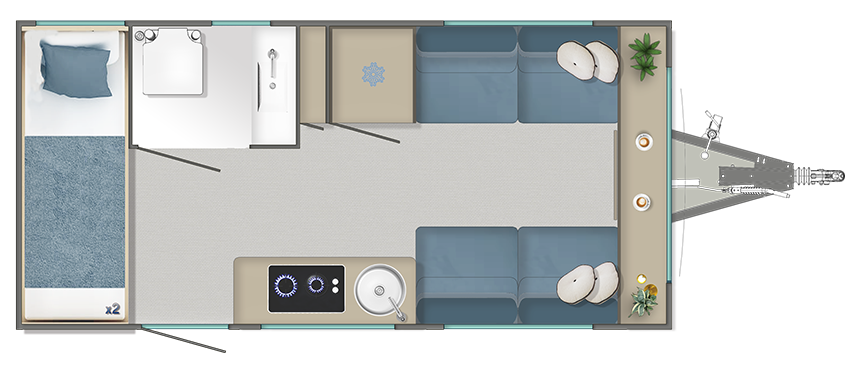

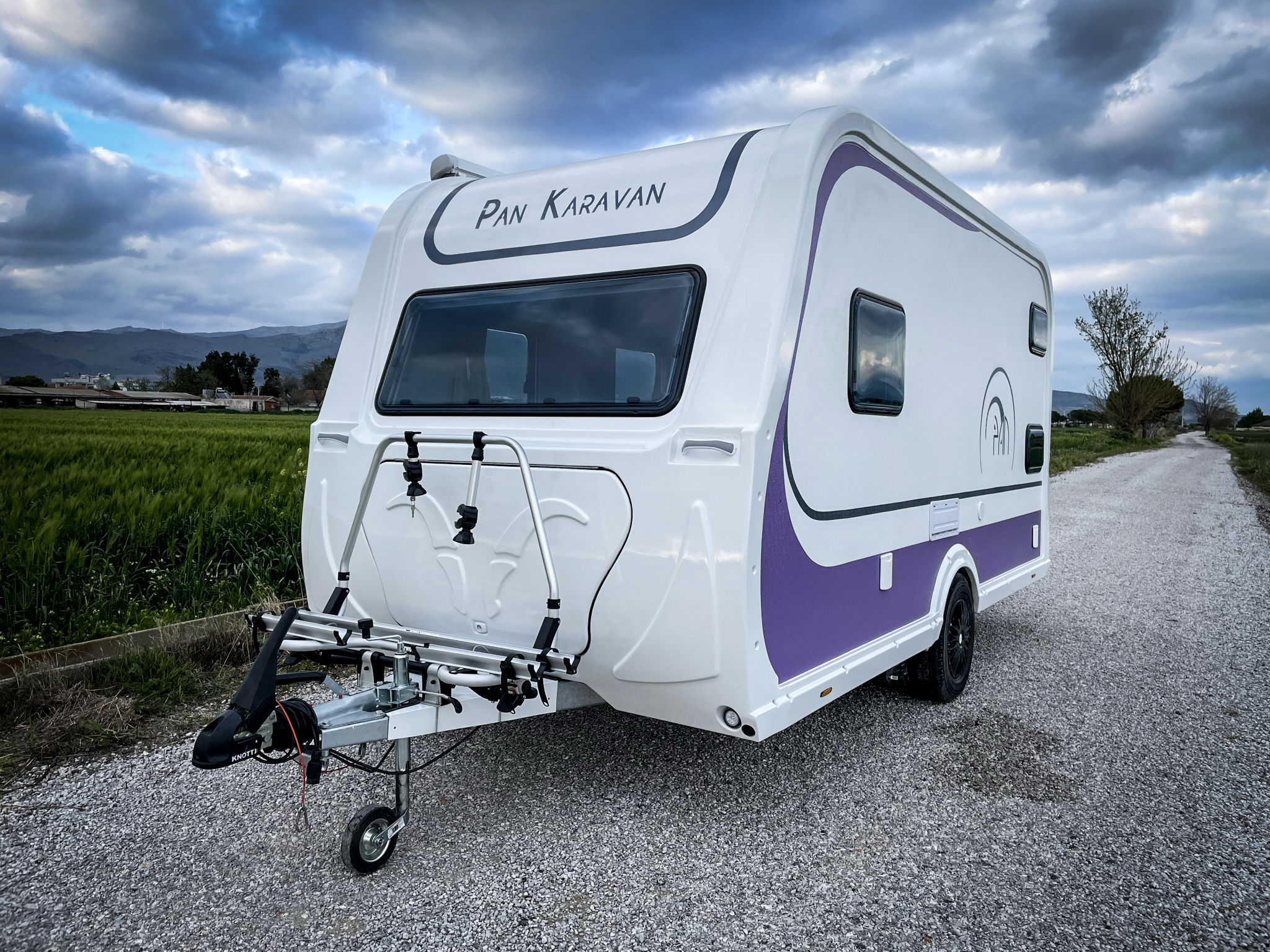

Bulut Plan

Bulut Plan

Model: Bulut 17.400 €

4 person
140 lt Fridge

Front: 1.35m
Bunk Bed: 0.70m

Length: 4.60m
Width: 2.10m
Height: 2.10m

Bulut Plan

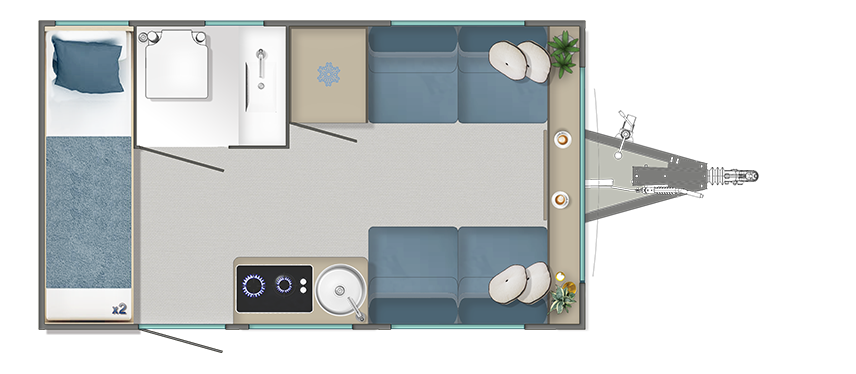

Rüya Plan

Model: Rüya15.700 €

4 person
90 lt Fridge

Front: 1.20m
Bunk Bed: 0.60m

Length: 3.90m
Width: 2.10m
Height: 2.10m

Bulut Plan

Rüya Plan

Model: Toprak15.700 €

3 person
90 lt Fridge

Front: 0.60m
Bed: 1.20m

Length: 3.90m
Width: 2.10m
Height: 2.10m

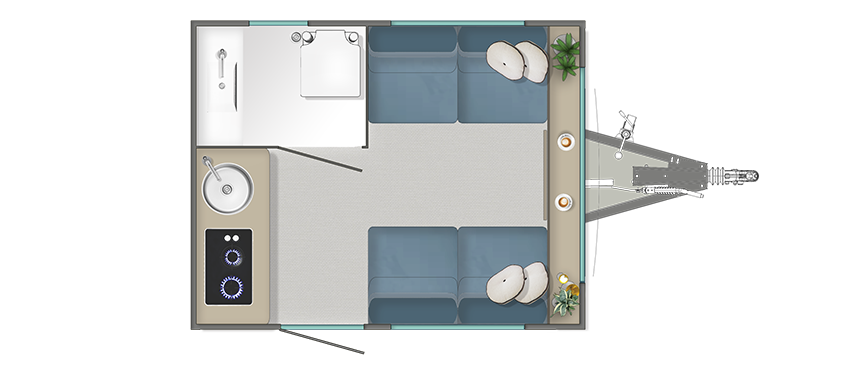

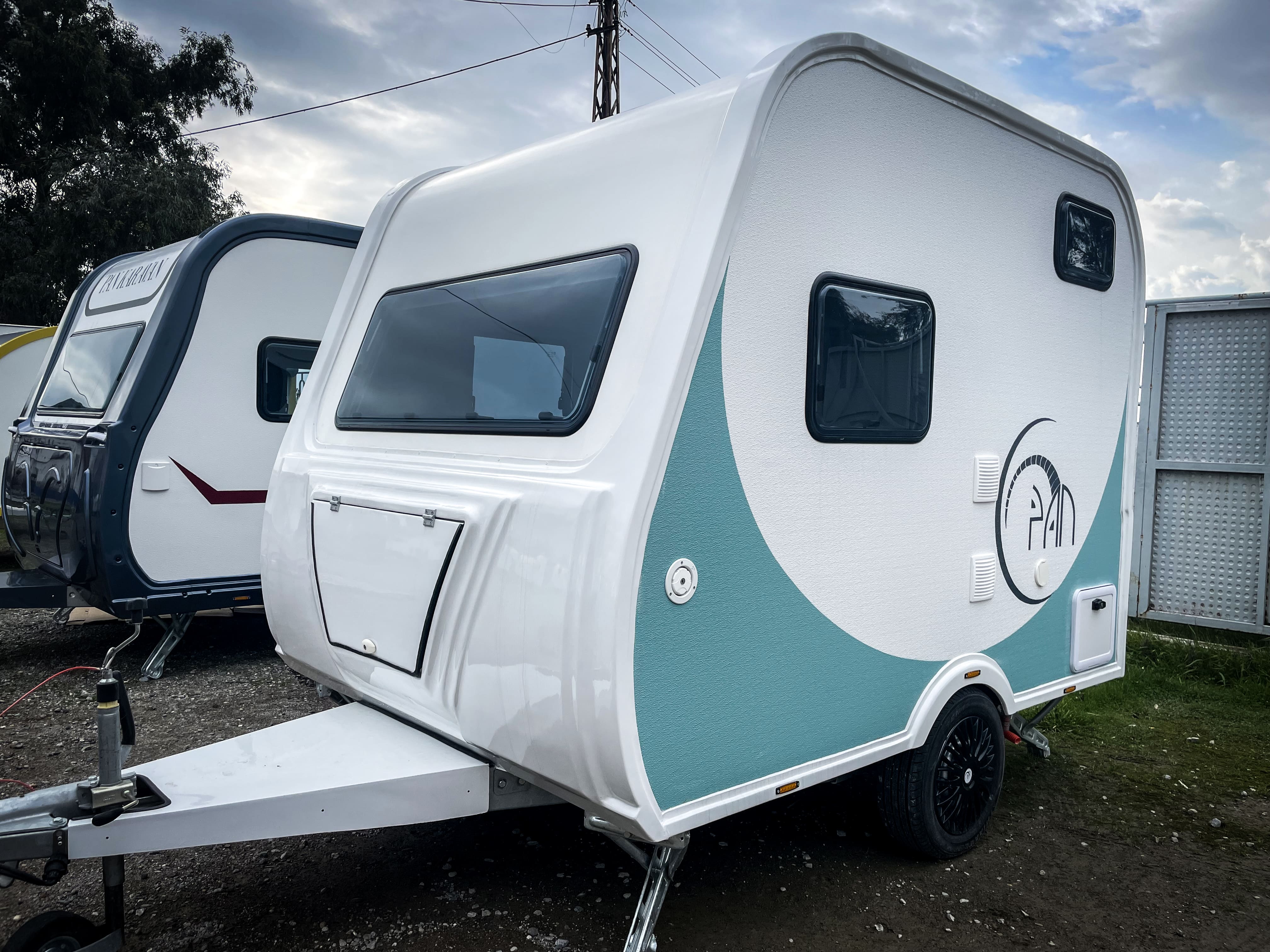

minipan Plan

Minipan Plan

Model: Mini Pan13.250 €

2 person
50 lt Fridge

Front: 1.20m

Length: 3.00m
Width: 2.10m
Height: 2.10m

Bulut Plan

Rüya Plan

Model: Camper

2-3 Kişilik
55 lt Buzdolabı

Ön Bölge: 0.8m
Yatak: 1.45m

Uzunluk: 3.00m
Genişlik: 1.50m
Yükseklik: 1.60m

Bulut Plan

Rüya Plan

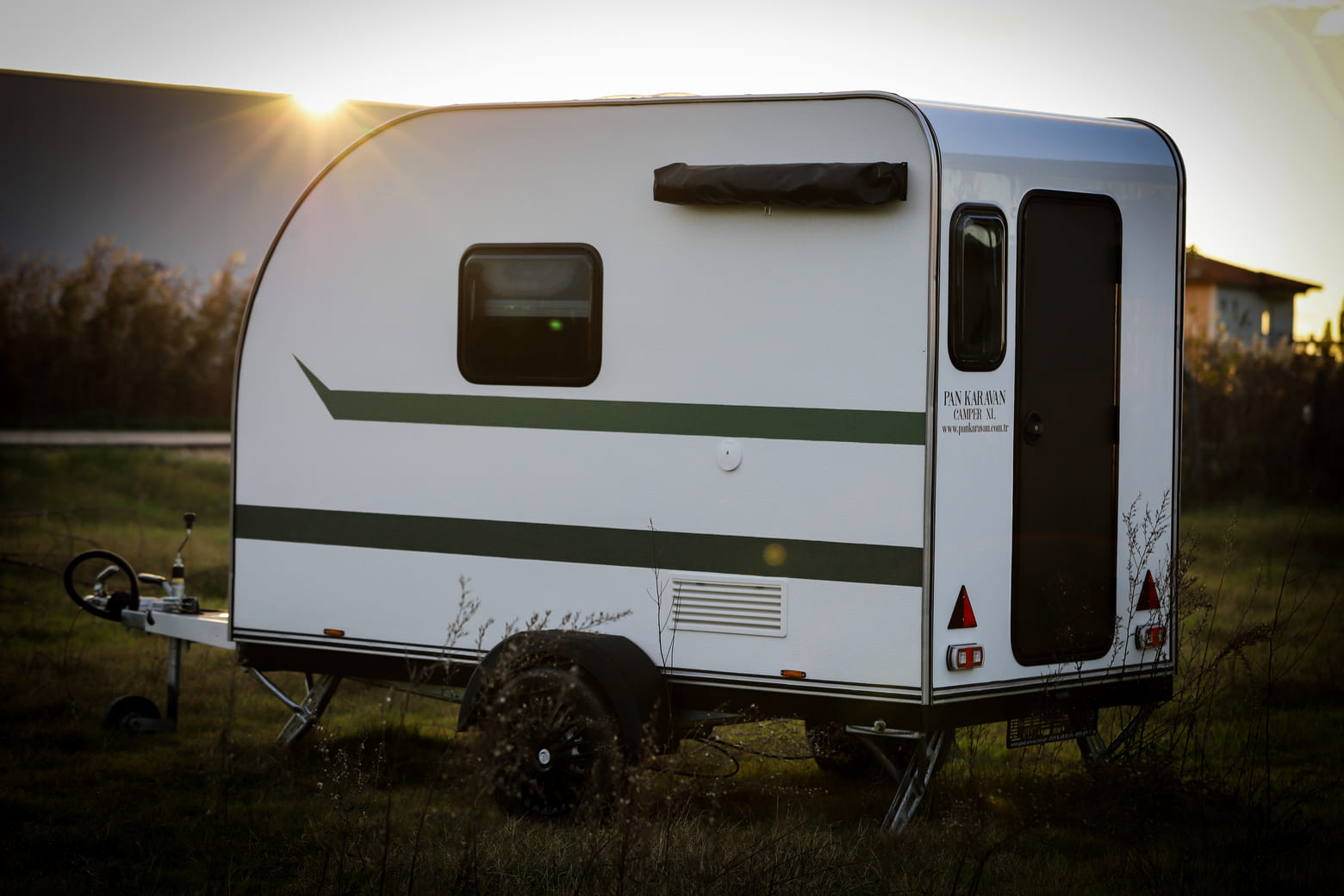

Model: Camper XL

2-3 Kişilik
90 lt Buzdolabı

Ön Bölge: 0.70m
Arka Yatak: 1.45m

Uzunluk: 3.00m
Genişlik: 1.50m
Yükseklik: 1.80m

minipan Plan

Minipan Plan

Model: Camper Mini

2 Kişilik

Ön Bölge: 1.14m

Uzunluk: 2.40m
Genişlik: 1.20m
Yükseklik: 1.25m

Standard Hardware

Exterior Features

On demand embossed or non-embossed GRP is used on the right and left walls.
Reinforced GRP is used throughout the exterior.
The ceiling is monolithic and provides an advantage in terms of sealing.
A durable fiber gusset system is applied in the tube section and all corners in the front area.
32 DNS XPS insulation is used.
1.5 mm CTP outer coating is applied.
1.5 mm CTP inner coating is applied.

Windows and Mosquito Nets

Import, shock absorber overhead windows are used.
Sliding windows are used on the side facades, kitchen and bunk heads.
There is ventilation in the bathroom with the dimensions of 400x200 mm.
Imported ventilation materials used on the 400x400 mm ceiling window.
There are mosquito nets and sunshades on all windows, doors and ventilation areas.
There is a mosquito net inside of the door.

Door

Doors have ABS coating.
Durable and safe metal caravan door lock systems are used.

Furniture

First class poplar contra is used in all of the furniture applications.
Since the furniture is cut with CNC, there are no sharp lines, and a safe living space is created thanks to the soft corners.
There are cabinet accessories to prevent the doors from being opened during the journey.

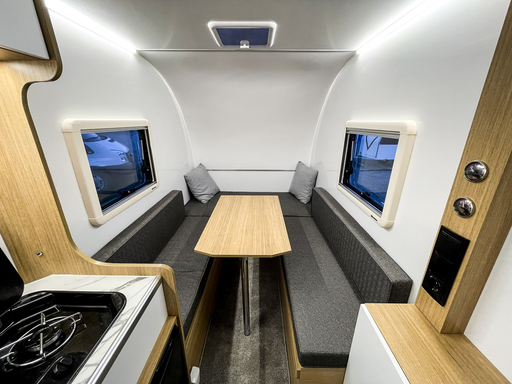

In the front seating area, apart from the 4-person table, there is a foldable mini table.
The furniture materails are water resistant.
There are large storage areas under the bunk beds and in the upper parts of the caravan.

Upholstery

Antiperspirant upholstery fabric is used in the bunk bed and sitting area.
Specially designed sponges are used that do not cause discomfort while sleeping.
There is a pillow in the front seating group.
İŞBİR brand products are used in upholstery.

Kitchen

Extra insulation is provided with a special waterproof material on the bench part.
There is an extra counter space that opens outwards at the front of the counter.
There is an extra collapsible mini counter area on the door side of the counter.
Stainless steel sink is used.
Two burner glass stove (gas) is used.
Batteries are made from stainless steel.
90 lt fridge.
Storage space and drawer for cutlery available.

Electricity and Lighting

100 amp batteries are used in our caravans.
There is a 220 volt electrical supply input that is resistant to external factors.
Fireproof cable (hallogenfree) is used in all electrical installations.
12 V water booster.
A pressure tank is used to increase the pressure.
There is LED flooring on the cabinet.
LED lighting is used in the bathroom, kitchen and exterior.
There is a spotlight with touch in the front seating group.
The bunk beds have reading lamps.
There are 12 volt charging sources.

Plumbing

85 lt lt clean water tank is used.
The shower cabin is wide enough to move around easily. It has measures of 100 cm x 80 cm.
Pneumatic plumbing materials are used.
Copper gas installation is used.
Spiral faucet is used in the bathroom.
Portable 21 lt. Thetford brand toilet.
Water filling mouth is covered for external factors.
There is a gas alarm detector in our caravans for security measures.
External shower system is available in all our caravans.

Infrastructure

A torsion braked axle is used. (1300 kg carrying capacity)
Al-ko or knott stabilizer
Al-ko or knott brake coupling system
Al-ko or knott rim tire

Other Hardware

Tailgate with evening dress that can be turned into a table
Handle bars to hold on.
Ventilation grills.
